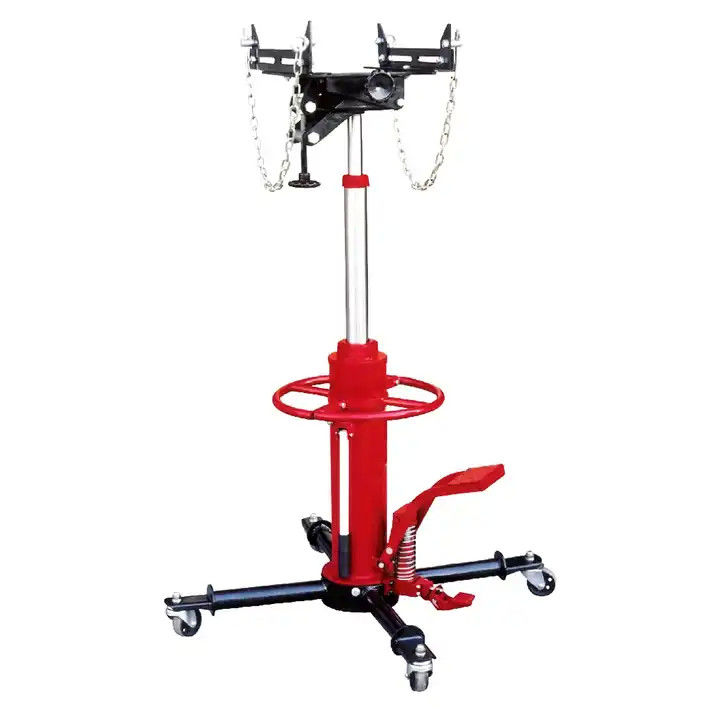

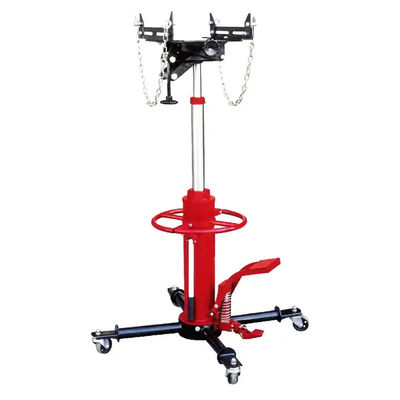

1100LBS Transmission Jack Hydraulic Jack 2 Stage Hydraulic Red Fit for Car Lift
Key Benefits:
The 500 KG hydraulic transmission jack is ideal for effortless installation or removal of automotive and light truck transmissions. Its robust construction ensures a prolonged service life, providing reliability for your operations. With a built-in hydraulic pump, adjusting the height is quick and hassle-free. The jack is equipped with four metal swivel wheels, enabling smooth and effortless movement within your workshop.
Hydraulic Transmission Jack Parameter:
| Model | Capacity | Height | Stroke | Weight | Package | QTY/20'CY | |||
| Ton | Min | Max | 1ST Stage | 2ND Stage | Net | Gross | mm | PCS | |
| VT9201 | 0.5 | 1100 | 1900 | 815 | 33.5 | 29 | 113*22*28 | 395 | |
| VT9202 | 0.5 | 1100 | 1900 | 815 | 42 | 38 | 115*27*27 | 500 | |
| VT9203 | 0.5 | 1100 | 1900 | 815 | 39 | 35 | 115*27*27 | 500 | |
| VT9204 | 0.5 | 1290 | 1780 | / | / | 35 | 33 | 87*35*20 | 462 |
| VT9205 | 0.5 | 850 | 1750 | 480 | 465 | 60 | 54 | 49*32*73 | 260 |
| VT9206 | 0.5 | 850 | 1750 | 480 | 465 | 48 | 42 | 49*32*73 | 260 |
| VT9207 | 0.5 | 850 | 1835 | 505 | 480 | 84 | 74 | 56*37*89 | 124 |
| VT9208 | 0.5 | 830 | 1815 | 505 | 480 | 92 | 82 | 61*37*89 | 124 |
| VT9209 | 0.5 | 1100 | 1900 | 815 | 25 | 24 | 108*17*30 | 520 | |
| VT9210 | 1 | 860 | 1835 | 505 | 480 | 90 | 77 | 56*37*88 | 124 |
Hydraulic Transmission Jack Description:
1. Application: The 500 KG hydraulic transmission jack is commonly used in automotive repair shops, garages, and manufacturing facilities where the removal and installation of transmissions or other heavy components are required. It provides a safe and efficient way to handle these heavy parts.
2. Lift Capacity: The jack is capable of lifting loads up to 500 kilograms, making it suitable for a wide range of transmission types and sizes. It is important to ensure that the weight of the transmission or component being lifted does not exceed the jack's capacity.
3. Hydraulic System: The jack operates using a hydraulic system, which allows for smooth and controlled lifting. It typically includes a pump, cylinder, and release valve. The hydraulic system provides the necessary power to raise and lower the load with ease.
4. Lift Height: The lift height refers to the maximum height that the jack can raise a load. The 500 KG hydraulic transmission jack may have an adjustable lift height, typically ranging from around 800 millimeters to 1800 millimeters. This adjustability ensures compatibility with various vehicle types and working heights.
5. Safety Features: The jack is equipped with several safety features to prevent accidents and ensure stability during operation. These may include a safety overload valve to prevent overloading, a foot pedal or control lever for precise control, and sturdy construction to handle heavy loads safely.
Mobility and Stability: Some transmission jacks come with casters or wheels, allowing for easy maneuverability in the workshop. Additionally, the jack may have a wide base or stabilizing arms to provide stability and prevent tipping during lifting operations.
