1000lbs Motorcycle Hydraulic Lift Table Lift Range 3 15/16in–13 3/8in

1000lbs Motorcycle Hydraulic Lift Table Lift Range 3 15/16in–13 3/8in

  • Highlight

    motorcycle hydraulic lift table 3 15/16in

    ,

    1000lbs motorcycle hydraulic lift table

    ,

    Motorcycle Lift 3 15/16in

  • Features
    Safety Locking System, Non-slip Rubber Pads, Removable Handle
  • Maximum Lift Height
    32 Inches
  • Material
    Steel
  • Drive Mode
    Hydraulic Drive
  • Color
    Black
  • Outline Dimension
    2715*760*120
  • Usage
    Indoor/Outdoor
  • Warranty
    1 Year
  • Minimum Height
    13 Inches
  • Power
    Electric Hydraulic
  • Platform Size
    17.5 X 9 Inches
  • Type
    Scissor Lift
  • Power Source
    Hydraulic
  • Lifting Capacity
    900KGS
  • Capacity
    1000 Lbs
  • Place of Origin
    China
  • Brand Name
    VIZO
  • Certification
    CE,ISO
  • Model Number
    CS9013
  • Minimum Order Quantity
    10 pcs
  • Packaging Details
    metal frame and carton box
  • Delivery Time
    20 Days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    2000 Sets/Month

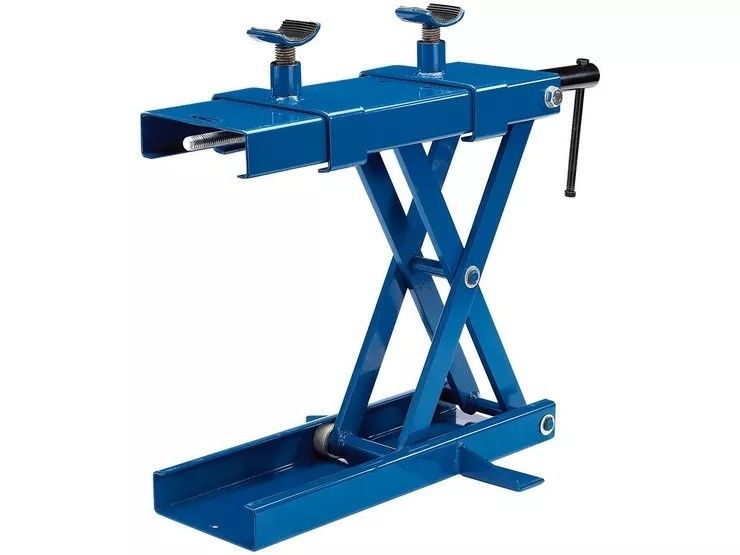

1000lbs Motorcycle Hydraulic Lift Table Lift Range 3 15/16in–13 3/8in

Motorcycle Lift/Utility Vehicle Lift

This motorcycle lifttable elevates motorcyles,ATVs,riding mowers or snowmobiles to make repairs and maintenance easier and more comfortable.



Key Benefits:

1,Lift range: 3 15/16in.–13 3/8in. (without adapters); 6 11/16in.–17 23/32in. (with adapters)

2,Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability

3,Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust

4,Paint is oil, grease and dirt-resistant for easy cleanup

5,Ram travel: 9 7/16in.





Technical Specifications:

Description  Specifications
Maximum Capacity 1,000 lbs
Minimum Lift Height without adapters 3.94 inch
Maximum Lift Height without adapters 13.38 inch
Minimum Lift height with adapters 6.69 inch
Maximum Lift Height with adapters 17.72 inch
Product Dimensions 20.86 x 7.08 x 6.69 inch
Product weight 35.2 lbs
