9000lbs 4 Post Lift With Wheels Alignment Hoist Lifting Height 1825mm

4000Kg Wheel Alignment Lift Manual Lock F4D40

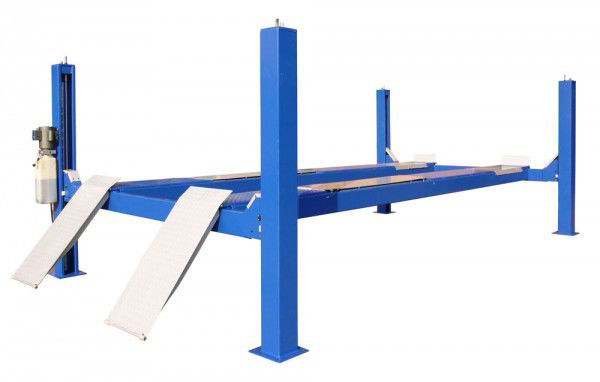

Four Post Wheel Alignment Lift

F4D40

F4D40 is a manual lock release four post wheel alignment lift, capacity 4000kg and lift height 1800mm. 92mm cylinders and ∅11mm cable make for safer.

1 . Key Features:

F4D40 lift capacity of 4000KG,lifting height 1800mm. The materials of the whole machine are all from famous steel enterprises, steel grade Q345, and the other main parts such as cylinders, steel wire ropes, electrical components and power units are all from famous enterprises.

We have been producing this double side manual lock lift for more than ten years, with a quantity of 100,000 sets, stable quality and moderate price.

2. Description:

• Quality built with CE-Certificate
• Manufacturers in accordance to ISO9001
• Manual Lock Release: The lift comes equipped with a manual lock release mechanism, allowing for quick and easy release of the vehicle.
• Large Diameter Iron Pulleys: The lift uses large diameter iron pulleys with Teflon bearings, ensuring a long lifespan and smooth operation.
• Multiple Locking Positions: The lift has multiple locking positions, providing maximum safety and stability while working on the vehicle.
• Adjustable Runway: The runway width can be adjusted to fit different vehicle sizes, making it versatile for a variety of vehicles.
• Platform Length: With a platform length of 5000mm, this lift can accommodate longer vehicles such as buses and RVs.
• Safety Locks: The lift is equipped with safety locks to prevent accidental lowering of the vehicle

3. Drawing - F4D40

4. Optional Different Dimension

5. Lift including and optional parts:

Including: 1*power unit, 1* lift, 1*secondary rolling jack

Others including, anchor bolts,stopper, instruction manual,

Optional:

Handle pump or air pump on rolling jack

control box

6. Delivery and package:

Package 1: lift(L*W*H) 4300*540*700mm

Package 2: power unit
