Middel Rise Scissor Lift
Scissor Lift - Middle Rise

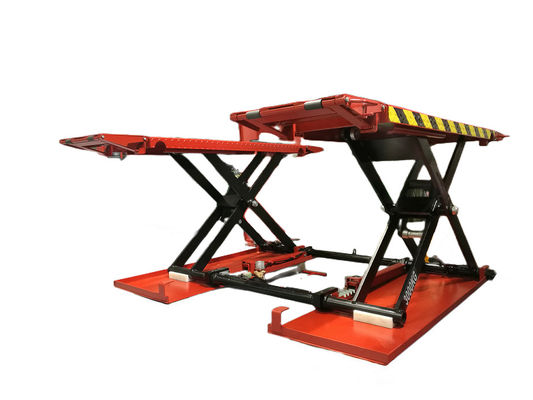

Middel rise, movable scissor lift, with heavy loading ramps, for more safety,we welded a long lock on bottom plate, its 3 or 4 length than normal, heavy but safety.
Key Benefits:
1,It fit for all kinds of tireshop also for Fl formula car with changer type quickly.
2,Under ground installation or direct to use without installation.
3,Pneumatic lock release,considerably reduce the noise when the machine is runningr
4,Anti-skidding diamond platform,to prevent vehicle side sliding.
5,Dynamic test:115%of the rated capacity.Static test:150%of the rated capacity.
6,CE certified.
Technical Specifications:
| Model | SS300 | ||
| Lifting Capacity | 3000Kg | ||
| Lifting Height | 1000mm | ||
| Min.height | 110mm | ||
| Lifting Time | About 60sec. | ||
| Oil pressure | 18mpa | ||
| Power supply | 110v-415v/50hz/60hz | ||
| Overall length | 2028mm | ||
| Overall width | 1982mm | ||
| Plateform length | 1420mm | ||
Our products are sold all over the world, you can rest assured.
