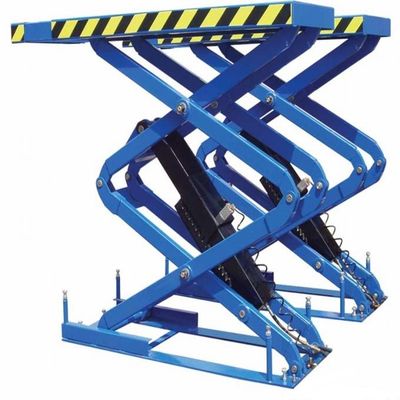

In Ground Scissor Lift High Rise 3.5T Capacity
This Scissor Lift is In Ground 3.5T capacity,pneumatic unlocking equipped with a electrical lock release mechanism, typically located on one of the columns. This mechanism allows for easy and convenient unlocking and lowering of the lift arms or pads, reducing the time and effort required for operation.
Technical Specifications:
| Lift capacity | 3500kg |
| Min height | 330mm |
| Lift height | 1900mm |
| Power of motor | 2.2kw |
| Oil pressure | 18MPa |
| Power supply | 220V~240/380~415V |
| 1/3PH,50Hz/60Hz | |
| Rise time | 50s |
| Drop time | 40s |
Key Benefits:
1,Floor plate style design,more suitable for low ceiling workshop. adapter and spiral round pickup tray
2,Single sides manual lock release,double safe &reliably.
3,Dual cylinders located in Master and slave column,high strength Chain drives system.
4,Adopt Italy made high quality seals.
5,Adopt quality power pack,more endurable,running safely and reliably.
6,Complete back plate design,elegant appearance.
7,Dynamic test:115%of the rated capacity.Static test:150%of the rated capacity.
8,Dual anti-skidding safety device from column ladder safety to hydraulic seal protection to ensure double safe on the staying of the vehicle.special hydraulic system design to avoid overload running.
9,CE required 24V simple control box (Optional ).
Drawing:
Services and Support:
Product supply: We can offer various types of lifting equipment, including car lifts, lifting platforms, and jacks. Our products feature advanced technology and high-quality standards to meet the diverse needs of different customers.
Customized design: If you have specific requirements or unique application scenarios, we can provide customized design services. Our engineering team will collaborate with you to tailor a lifting equipment solution that suits your needs and specifications.
Technical support: We have a professional technical team that can provide support in terms of lifting equipment operation, maintenance, and troubleshooting. We will ensure that your lifting equipment remains in optimal condition and assist you in resolving any potential issues.
After-sales service: We provide comprehensive after-sales services, including equipment installation, training, warranty, and maintenance. Our commitment is to ensure that you have the best experience and value when using our products.
Business collaboration: If you are interested in business collaborations related to lifting equipment, we are open to exploring further opportunities. We can work together to develop markets, promote products, and establish long-term and stable business partnerships.
If you are interested in any of the above services or collaboration opportunities, please feel free to contact us. We look forward to further communication and cooperation with you.
Package:
P1: LIFT 1600*600*840mm

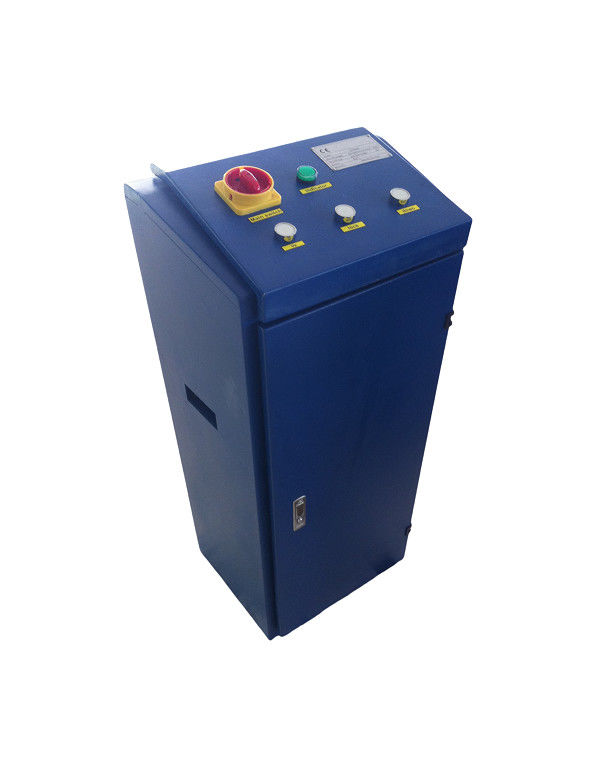

P2: Power Cabinet 560*380*1230mm
Our products are sold all over the world, you can rest assured.
