Side By Side Four Post Parking Lift 4000kg 9000lbs

9000LBS Four Post Parking Lift Manual Lock Release F4T40L

F4T40 is a side by side structure four post parking lift, capacity 4000kg and lift height 1950mm. 120*120mm column, 90mm cylinders and ∅11mm cable make for safer.

1 . Key Features:

This is a new design of four post parking garage, in the factory we have done countless experiments, wire rope breakage, oil pipe burst open, the machine is subjected to external impact, weight overload and so on, the fact proves that this structure can indeed maximize the guarantee of the user's property and personal safety.

F4T40XL is a unique four post parking lift with an outsourced structure, which makes the machine more stable. We have been producing these machines for over ten years and tens of thousands of them are serving our guests every day.

The materials of the whole machine are all from famous steel enterprises, steel grade Q345, and the other main parts such as cylinders, steel wire ropes, electrical components and power units are all from famous enterprises.

2. Specification:

3. Key Benefits:

1, A53-F/S235JR/ST37-2)steel materials.

2, Column 120*120 square pipe.

3, Cross arm are 50*100 flat steel.

4, Secondary slack cable lock system

5, Limit switch keep you car from touching the ceiling

6, Moveable design,more convenient for home use.

7, Hydraulic driven,cable lifting system.

8, Manual lock release.

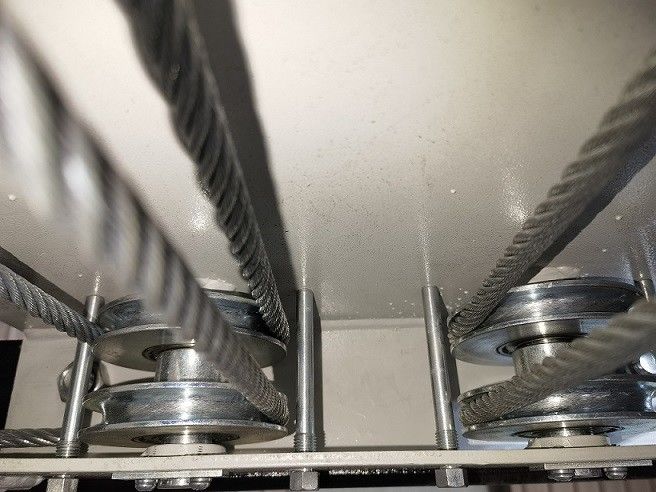

9, Aircraft cable never get rust.

10, Power unit that mounts on the post in two different positions.

11, Locks are cut out of structural steel tubing reliable than tabs welded on the post.

12, Steel slider captures the lock giving you a safe lift to work under.

13, In conformity with CE requirements.

4. Production Dimension:

5. Lift including and optional parts:

Including: 1*power unit, 1* lift, 1*control box(optional)

Others including, steel drip tray,plastic drip tray, stopper, aluminum ramp,caster kit,instruction manual.

Optional: Control box

6. Delivery and package:

Package 1: lift(L*W*H) 4380*550*720mm

Package 2: power unit 900*300*360mm

7. Services and Support:

Product supply: We can offer various types of lifting equipment, including two post lifts, four post lift, parking lift, scissor lift, wheel alignment lift and shop tool like engine crane, hydraulic press,transmission Jack,oil machine.

Customized design: If you have specific requirements or unique application scenarios, we can provide customized design services. Our engineering team will collaborate with you to tailor a lifting equipment solution that suits your needs and specifications.

Technical support: We have a professional technical team that can provide support in terms of lifting equipment operation, maintenance, and troubleshooting. We will ensure that your lifting equipment remains in optimal condition and assist you in resolving any potential issues.

After-sales service: We provide comprehensive after-sales services, including equipment installation, training, warranty, and maintenance. Our commitment is to ensure that you have the best experience and value when using our products.

Business collaboration: If you are interested in business collaborations related to lifting equipment, we are open to exploring further opportunities. We can work together to develop markets, promote products, and establish long-term and stable business partnerships.

If you are interested in any of the above services or collaboration opportunities, please feel free to contact us. We look forward to further communication and cooperation with you.

8. More Picturers:

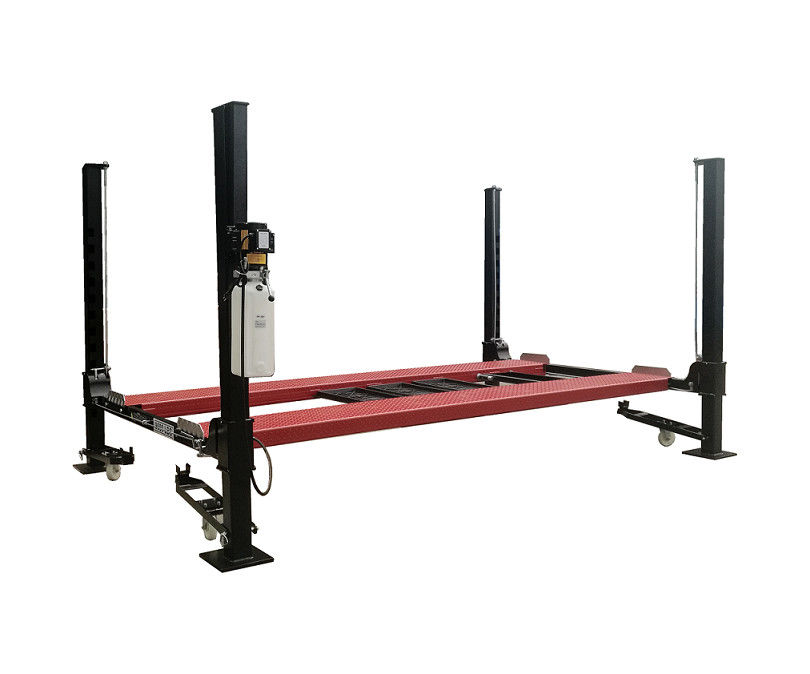

1, lift

2,3 plastic drip tral

3, aluminum ramp

4,rolling jack tray

5,caster kit
