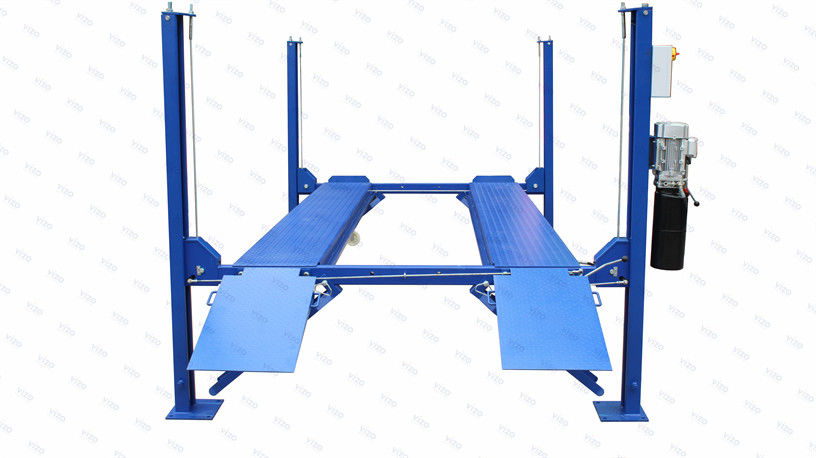

4 Post Parking Hoist F4T36
3600Kg Home Garage Lift
We offer wide range 4-post parking lifts, manual lock release, electrical lock release.With an impressive lifting capacity of 3600kg to 5000 kg, runwy from shrt 4000mm to 5156mm, these lifts offer a reliable solution for vehicles of various sizes and weight classes. Whether you prefer a standard lift or a no-standard lift, we have the right option for you.
Key Benefits:
1,For commercial and home parking use.
2,Full body Q235 materials.
3,Moveable design,more convenient for home use.

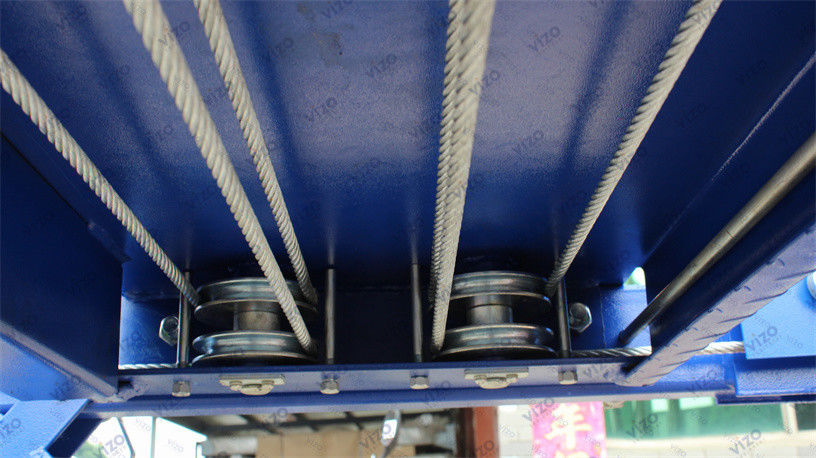

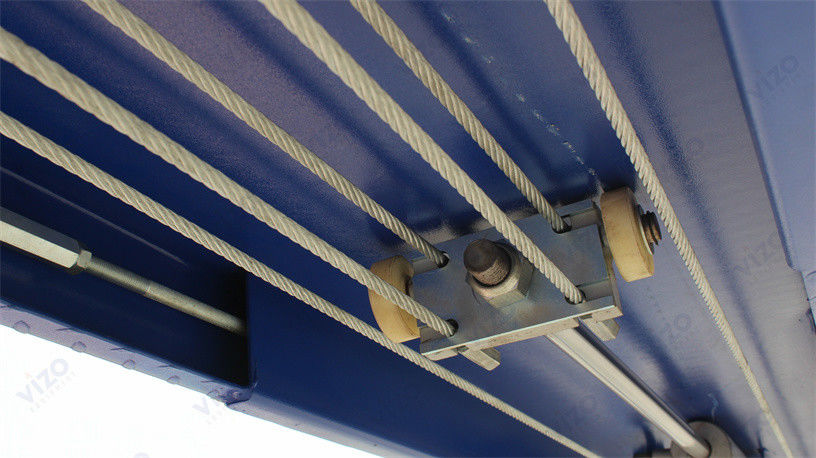

4,Hydraulic driven,cable lifting system.
5,Single side manual lock release.
6,Four points automatic safety locks.
7,Unchangeable width between runways.
8,Integrated hydraulic drive system .
9,in conformity with CE requirements.
Technical Specifications:
| Model | F4T36 | F4T36N | F4T36XL | ||
| Lifting Capacity | 3600Kg | 3600Kg | 3600Kg | ||
| Lifting Height | 1900mm | 1800mm | 1900mm | ||
| Min.height | 120mm | 120mm | 120mm | ||
| Lifting Time | About 60sec. | About 60sec. | About 60sec. | ||
| Oil pressure | 18mpa | 18mpa | 18mpa | ||
| Power supply | 110v-415v/50hz/60hz | 110v-415v/50hz/60hz | 110v-415v/50hz/60hz | ||
| Overall length | 5268 | 4936 | 5375 | ||
| Overall width | 2631 | 2631 | 2631 | ||
| Plateform length | 4200 | 4000 | 4585 | ||
Drawing - F4T36

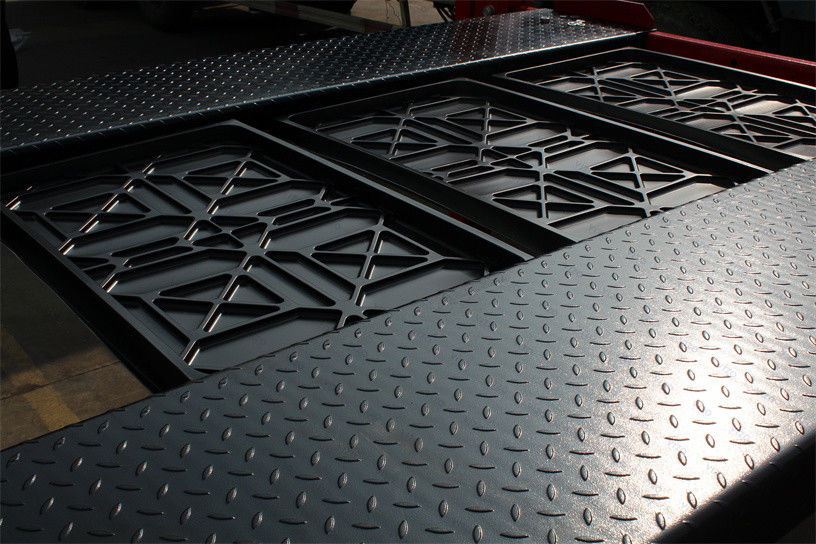

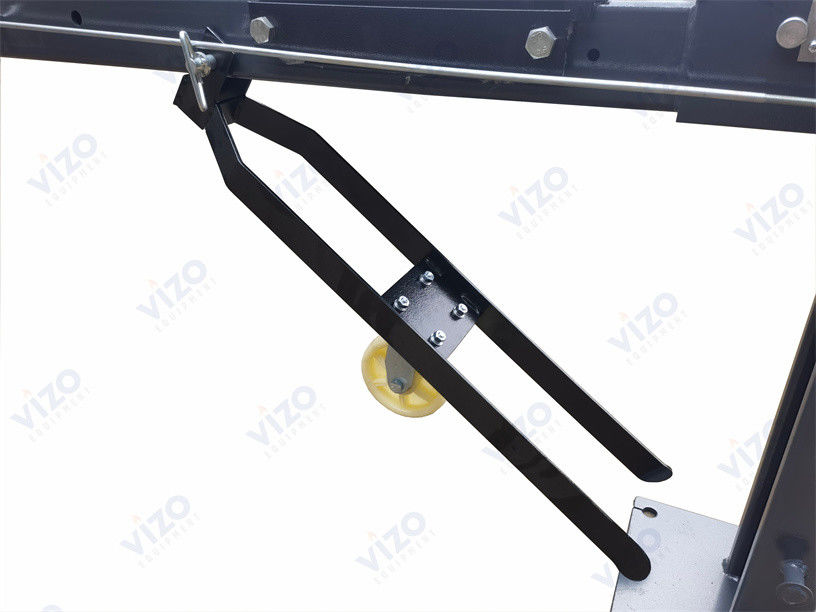

More Picturer:
Our products are sold all over the world, you can rest assured.
