Double Width Four Post Parking Lift 1000LBS

12000LBS Formula for Double Stacking Lift

Model: F4T45

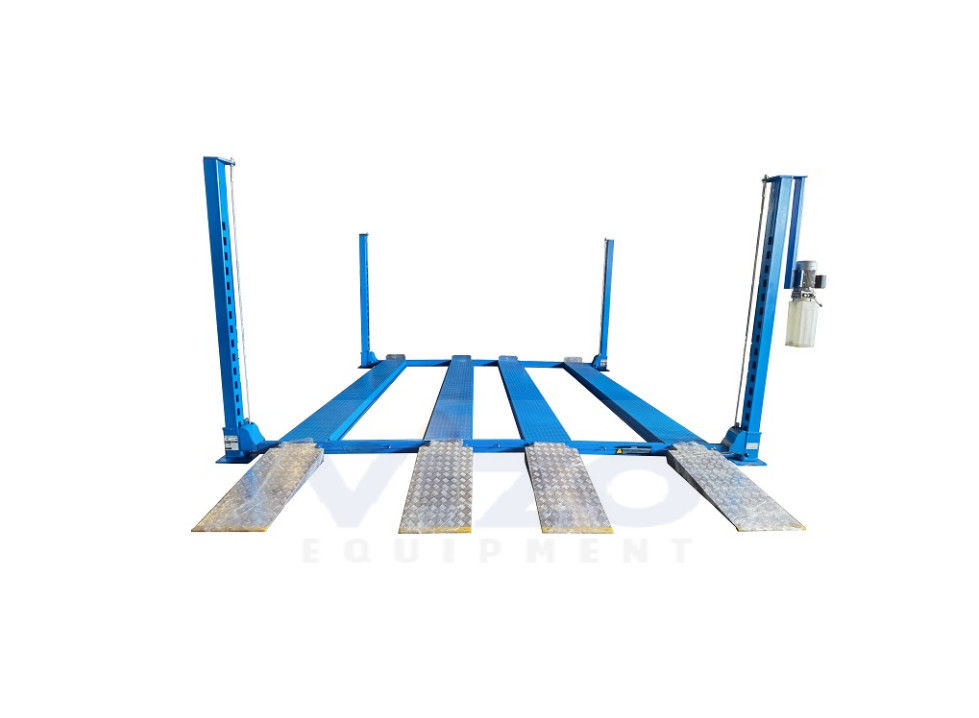

F4T45 is a side by side structure four post parking lift, capacity 4500kg and lift height 1950mm. 120*120mm column, 90mm cylinders and ∅11mm cable make for safer.

1 . Key Features:

F4T45 is for doubling the space of your two-car garage, you only need to have a space about 5.3*6.2 to stop 4 cars,of course you can parking two car below, with the optional decks it can turn your lift into a mezzanine to store the garage clutter or most anything else.

The materials of the whole machine are all from famous steel enterprises, steel grade Q345, and the other main parts such as cylinders, steel wire ropes, electrical components and power units are all from famous enterprises.

2. Specification

3.Description:

• Quality built with CE-Certificate
• Manufacturers in accordance to ISO9001
• Strong post 120*120 square pipe

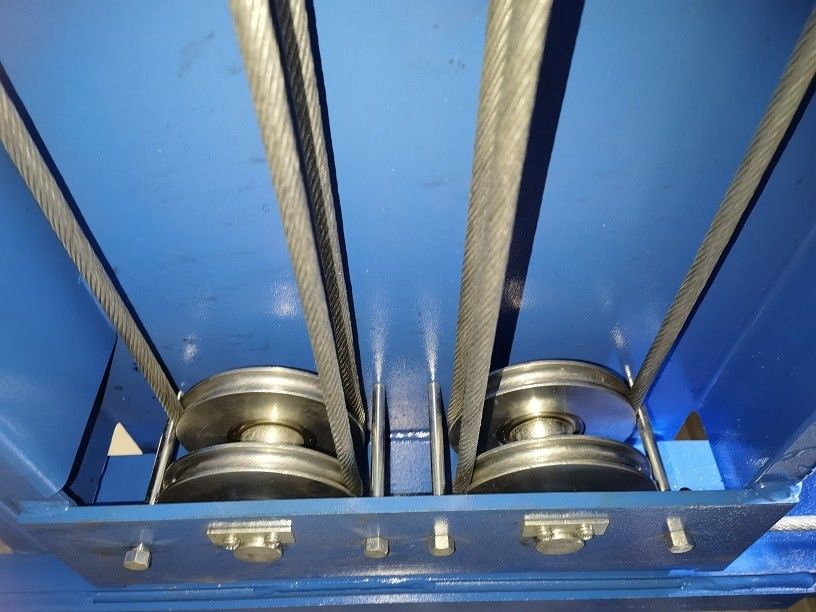

• Secondary slack cable lock system
• Aircraft cable never get rust.
• Power unit that mounts on the post in two different positions
• Caster wheels are heavy- duty poly,to protect your painted floors.

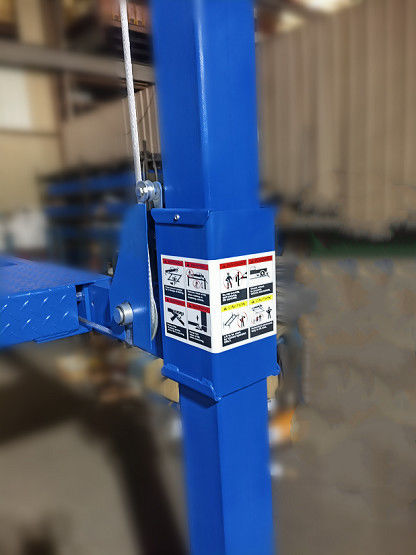

• Locks are cut out of structural steel tubing reliable than tabs welded on the post.
• Steel slider captures the lock giving you a safe lift to work under.

4. Production Dimension:

5. Lift including and optional parts:

Including: 1*power unit, 1* lift, 1*control box(optional)

Others including, steel drip tray,plastic drip tray, stopper, aluminum ramp,caster kit,instruction manual.

Optional:

Secondary rolling jack, Control box,aluminium deck

6. Delivery and package:

Package 1: lift(L*W*H) 5800*550*1100mm

Package 2: power unit 900*300*360mm

7. Services and Support:

Product supply: We can offer various types of lifting equipment, including two post lifts, four post lift, parking lift, scissor lift, wheel alignment lift and shop tool like engine crane, hydraulic press,transmission Jack,oil machine.

Customized design: If you have specific requirements or unique application scenarios, we can provide customized design services. Our engineering team will collaborate with you to tailor a lifting equipment solution that suits your needs and specifications.

Technical support: We have a professional technical team that can provide support in terms of lifting equipment operation, maintenance, and troubleshooting. We will ensure that your lifting equipment remains in optimal condition and assist you in resolving any potential issues.

After-sales service: We provide comprehensive after-sales services, including equipment installation, training, warranty, and maintenance. Our commitment is to ensure that you have the best experience and value when using our products.

Business collaboration: If you are interested in business collaborations related to lifting equipment, we are open to exploring further opportunities. We can work together to develop markets, promote products, and establish long-term and stable business partnerships.

If you are interested in any of the above services or collaboration opportunities, please feel free to contact us. We look forward to further communication and cooperation with you.
