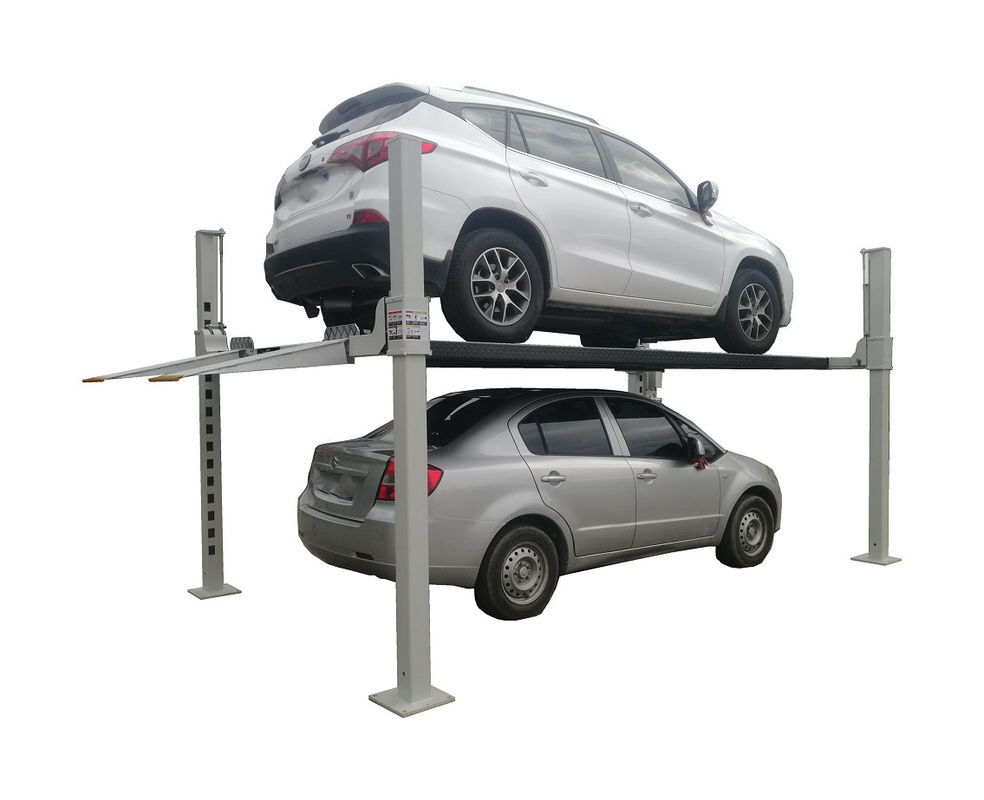

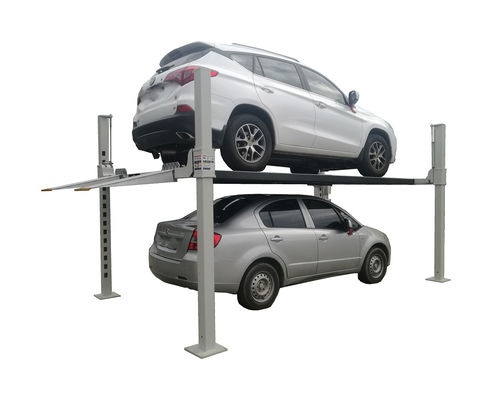

Four Post Parking Lift Electrical Lock Release 9000LBS
This is a new design of four-pillar parking garage, in the factory we have done countless experiments, wire rope breakage, oil pipe burst open, the machine is subjected to external impact, weight overload and so on, the fact proves that this structure can indeed maximize the guarantee of the user's property and personal safety.
After several years of efforts, we have made this structure of the four-post parking garage can cover most of the use, whether in the narrow parking room or multiple car parking needs, or oversized off-road vehicles, private yachts.
Technical Specifications:AFSE40
| Model | AFSE40 | ||
| Lifting Capacity | 4000Kg | ||
| Lifting Height | 1968mm | ||
| Min.height | 120mm | ||
| Column height | 2416mm | ||
| Overall width | 2944mm | ||
| Overall length | 5396mm | ||
| Overall length | 5396mm | ||
| Plateform length | 4318mm | ||
| Power electric | 110V-415V/20Amp | ||
Key Benefits:
1,A53-F/S235JR/ST37-2)steel materials.
2,Column 120*120 square pipe,
3,Cross arm are 50*100 square pipe
4, Secondary slack cable lock system
5,Limit switch keep you car from touching the ceiling
6,Moveable design,more convenient for home use.
7,Hydraulic driven,cable lifting system.
8,Electrical lock release.
9,Four points automatic safety locks.
10,Integrated hydraulic drive system .
11,In conformity with CE requirements.
Electrical Lock Release

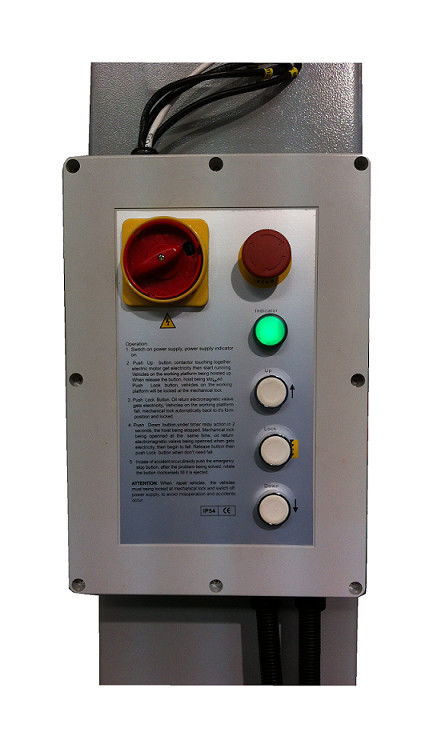

This electric 4-post parking garage lift adopts CE standard electric control box, in order to facilitate the installation of the guests, we equipped with an auxiliary column, electric control box, limit switches, power units are installed in this auxiliary column above. The control box is equipped with a hand-held operator, which is convenient for you to operate even 6 meters away from the machine, and the aviation plug is convenient to use.
You can also choose different length of runway
| Model | AFSE40 | AFSE40-S | AFSE40-XL | ||
| Lifting Capacity | 4000Kg | 4000Kg | 4000Kg | ||
| Lifting Height | 1968mm | 1968mm | 1968mm | ||
| Min.height | 120mm | 120mm | 120mm | ||
| Lifting Time | About 60sec. | About 60sec. | About 60sec. | ||
| Oil pressure | 18mpa | 18mpa | 18mpa | ||
| Power supply | 110v-415v/50hz/60hz | 110v-415v/50hz/60hz | 110v-415v/50hz/60hz | ||
| Overall length | 5396mm(212.5'') | 4936mm(194.3'') | 6084mm(239.53'') | ||
| Overall width | 2870mm(113'') | 2870mm(113'') | 3252mm((128.03'') | ||
| Plateform length | 4318mm(170'') | 4000mm(157.5'') | |||

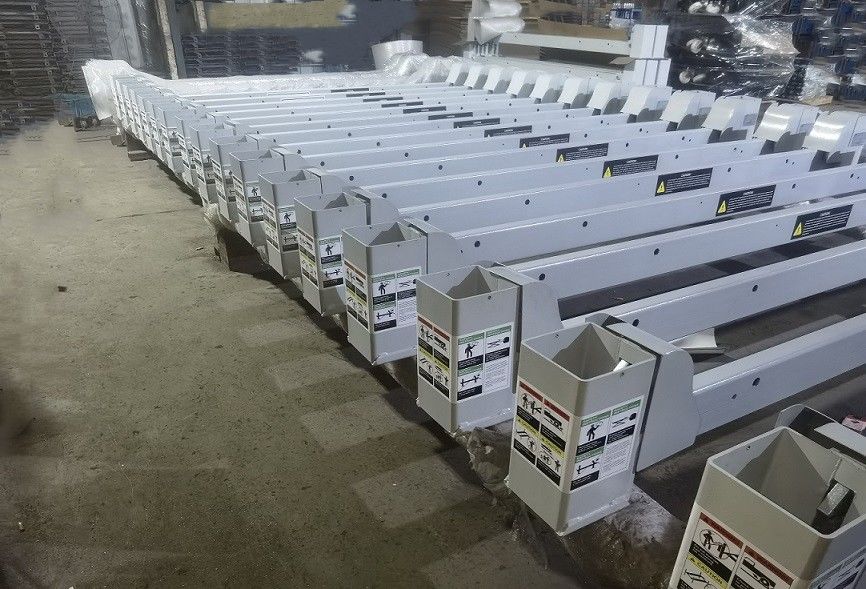

We have been producing and selling this machine for more than 10 years, and every year dozens of customers visit the factory to test the machine, so we have also accumulated a lot of experience, and we have been perfecting the machine! we provide a 5-YEAR WARRANTY for all the machines!
Every lift you purchase from us includes the following accessories:
1, lift
2,3 plastic drip tral
3, aluminum ramp
4,rolling jack tray
5,caster kit
Our products are sold all over the world, you can rest assured.
